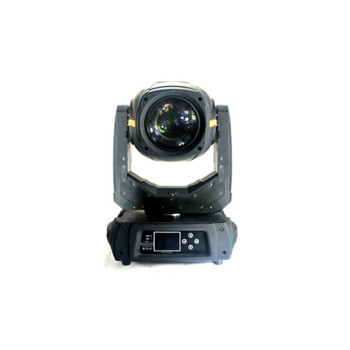

Sharpy 10r 280W Beam Wash Spot 3in1 Moving Head Light

group name: Beam moving head light

Min Order: 1 piece

brand name: Mowl

model: MN-BMH280W

Nearest port for product export: Guangzhou / Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, Express Delivery

Acceptable payment methods: T/T, PayPal, Westem Union, Cash

update time: Tue, 14 Jan 2020 18:19:43 GMT

contact supplier

Paramtents

Lamp 280W lamp
Lifespan of lamp average 2000h
Style Beam spot wash 3-in-1 moving head light
Color wheel 13 dichroic filters + white
Static Gobo wheel with 14 fixed gobos, at variable rotation
Zoom 8.7degree~23degree
Strobe double lens strobe (0.5~9 times/second)
Working temperature -25-40℃

Packging & Delivery

46cm x46cm x59cm
Min Order1 piece

Briefing

Power Supply
·Related voltage: AC100V-240V, 50/60Hz
·Related power: 450W

Detailed

Specification

Technical Specifications

Light Sources

·Lamp: 280W lamp

·Lifespan of lamp: average 2000h

·Color: white, 8000K

·Ballast: Electronic Ballast

Optics

·Style: Beam spot wash 3-in-1 moving head light

·Color wheel: 13 dichroic filters + white

·Rotating Gobo Wheel: with 9 bidirectional and indexable gobos (? 15.4mm, at variable ? 13mm)

·Static Gobo wheel: with 14 fixed gobos, at variable rotation

·Prism 1: 8-facet circular prism rotating in both directions at different speeds

·Prism 2: 6-facet linear prism rotating in both directions at different speeds

·Lens: High precision optical lens, five layer coating

·Zoom: 8.7degree~23degree

·Zoom range: 8.7degree~23degree spot application; 3.8degree~8.7degree beam angle application

·Atomizing angle: 60degree

·Wash effect : adjustable Wash effects angle

·Focus: linear adjustment

·Dimmer: 0~100% linear adjustment

·Beam angle: 8.7degree~23degree

·Strobe: double lens strobe (0.5~9 times/second)

Light Output

·Luminous flux: 60000 Lm

·Illuminance: 60000 Lux (5m 10°)

·Optimal projection distance: 4-40m

Movement

·Pan(X axis): 540°automatically accurate positioning

·Tilt(Y axis): 270°automatically accurate positioning

Control

·Control mode: Standard DMX512, Automatic and Master/ slave mode

·DMX channel: 17CH/24CH

·Display of control panel: four buttons LCD display

·Other function: Controller can open the lamp and reset, including delaying function

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 450W

Construction

·Body dimension: D380*W240*H900mm

·Net weight: 18.5kg

·Shell color: black

·Shell material: ABS

Working Environment

·Working temperature: -25-40℃

·Cooling: Fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage "Accessaries series")

·Safety rope: different size safety ropes optional (choose from VanGaa homepage "Accessaries series")

Package

·Carton board package size: 460*460*590mm(1pc/carton)

·N.W/G.W/Volume weight : 18.5kg/19.5kg/25.5kg
