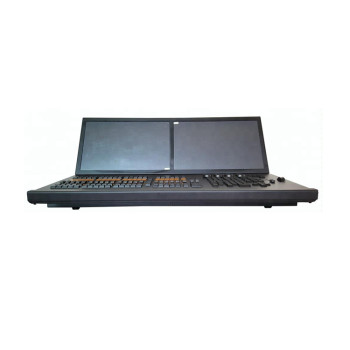

Intelligent DMX Grand MA2 Moving Head Lighting Controller

contact supplier

Paramtents

Packging & Delivery

Briefing

Pro Stage Intelligent RDM DMX Grand Ma2 Consol on pc MA 2 Lighting Controller Console

Detailed

Specifications of DJ DMX Console:

Votalge: AC100-264V,50-60Hz

Power: 150W

Built-in UPS uninterruptible power supply , zero delayed automatic switching , undervoltage, overvoltage protection

Panasonic UPS, dedicated high density maintenance-free batteries

Industrial Integration 1037U Motherboard

Multi-screen touch control display card

ROM-60GB solid state disk(120GB/240GB optional)

RAM- 4GB DDR3 1600 1 master dimming wheel(8GB/16GB DDR3 1600 optional)

4 Attribute value encoder wheel (integration of key functions)

1 Master Fader (60mm manual)

2 AB Fader (100mm manual)

21 program playback Fader (60mm manual)

42 program store function buttons

Two 19-inch wide screen touch screen

Full-size command keypad

Flight case attached with keyboard and mouse 4 USB connector (A type)

1 spare USB input port (B type)

1 audio input interface

1 stereo output interface

1 LTC input interface

6 DMX-512 output interface

1 DMX-512 input connector (composite output function)

2 working lamp Interface

1 gigabit network interface

1 MIDI input interface

Size: 82*68*13cm

Flight case packing: 96*81*27cm;

GW: 50kg
