2.4G Wireless DMX512 Signal Controller Wireless Transmit Receiver

group name: Others

Min Order: 1 piece

brand name: Mowl

model: MN-SC

Nearest port for product export: Guangzhou / Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, Express Delivery

Acceptable payment methods: T/T, PayPal, Westem Union, Cash

update time: Tue, 14 Jan 2020 18:33:29 GMT

contact supplier

Paramtents

Input voltage 5VDC 500mA MIN
Work frequency section 2.4G ISM,126 channels.frequency section
Max transmitting power rate 20dBm

Packging & Delivery

Min Order1 piece

Briefing

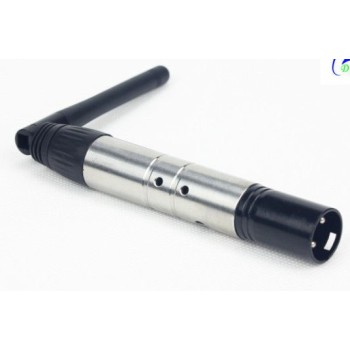

2.4G Wireless DMX512 Signal Controller Male Female XLR 3pins DMX Wireless Transmit Receiver

Detailed

Specification

Product Feature

1. Tricolor LED displaying

2. 126 channels jumping frenquecy automaticly,high anti-jamming ability. to ensure works reliability

3. 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere each other in the same place...

4. Input voltage:5VDC 500mA MIN

5. Communication distance:400M(visible distance , it has some different base on environment)

6. Work frequency section:2.4G ISM,126 channels.frequency section

7. Max transmitting power rate:20dBm

8. Receiver sensitive:-94dBm

9. Signal port:3pin female plug

Operating manual:

ID code and LED color corresponding correlation:

1: RED

2: GREEN

3: RED+GREED = YELLOW

4: BLUE

5: RED+BLUE = PURPLE

6: GREEN+BLUE = CYAN

7: RED+GREED+BLUE = WHITE

Press key 1 time to indicate ID setting, press again to set ID, then ID value adding 1 each time by press.

Working condition:

LED constant lit up: no DMX or wireless signal

Red LED flash: transmitting

Green LED flash: Receiving

RF frequency------2. 400-2. 525G, total 126 channels, it is searching automatically.

ID Code------1-7 groups ID code, press "Key" for setting, it only can works under same ID code of transmitter and receiver.

Establishing Communication:

1. Power on DMX512 wireless received board and transmitted board.

2. Press "Key" button to set same ID value of transmitted board and received board, please use different ID value if you need to use more than 1 group wireless system at the same time in the same place.

3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.

4. Communication was established correctly then.

Wireless DMX Transmitter ( Male Plug) ...............1pcs

Wireless DMX Receiver (Female Plug) ...............1pcs

Power Supply ...............1pcs
